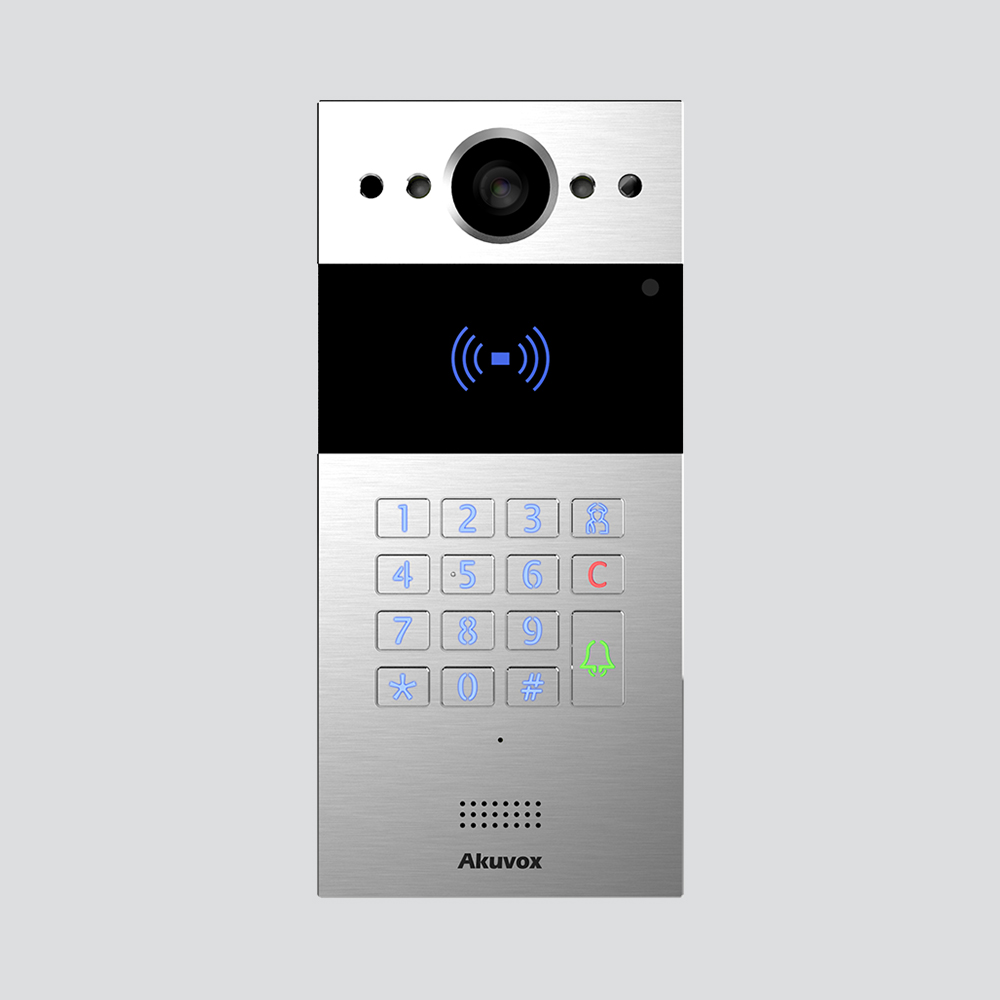

Akuvox Intercom Video Doorphone R20K Features:
- Vandal-resistant body with numeric keypad
- Wide-angle camera: 110o (H), 58o (V)
- PoE (IEEE802.3af, Power-over-Ethernet)
- Two-way audio communication over IP networks with Echo Cancel feature
- SIP standard for easy integration in every SIP capable PBXes
- ONVIF standard for easy integration with any network surveillance system
Physical & Power
- Front panel: Aluminum alloy
- Camera: 2M pixels, automatic lighting
- Numeric keypad with extra buttons
- Light sensor: Support
- Infrared sensor: Support
- Wiegand port: Support
- RS485 port: Support
- RF card reader: 13.56MHz (with NFC) & 125kHz
- Relays out: 2
- Inputs: 2
- Microphone: -40dB
Audio & Video Specs
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
- Sensor: 1/2.7”, CMOS
- Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
- Video codec: H.264, H.265
- Video resolution: up to 1920×1080
- Max. image transfer rate: 1080p – 25fps
- Viewing angle: 110°(H) / 58°(V)
- High-intensity IR LEDs for picture lighting during dark hours with an internal light sensor
- Compatible with 3rd-Party-Video components
Door Entry Feature
- Relays controlled individually by DTMF tones
- Camera permanently operational
- Auto-night mode with LED illumination
- White balance: auto
- Minimum illumination: 0.1LUX
Akuvox Intercom Video Doorphone R20K Application Scenarios:
- Office door phone with on-site or hosted IP-PBX
- Remote site entry over the Internet
- Apartment/flat intercom with door access control
