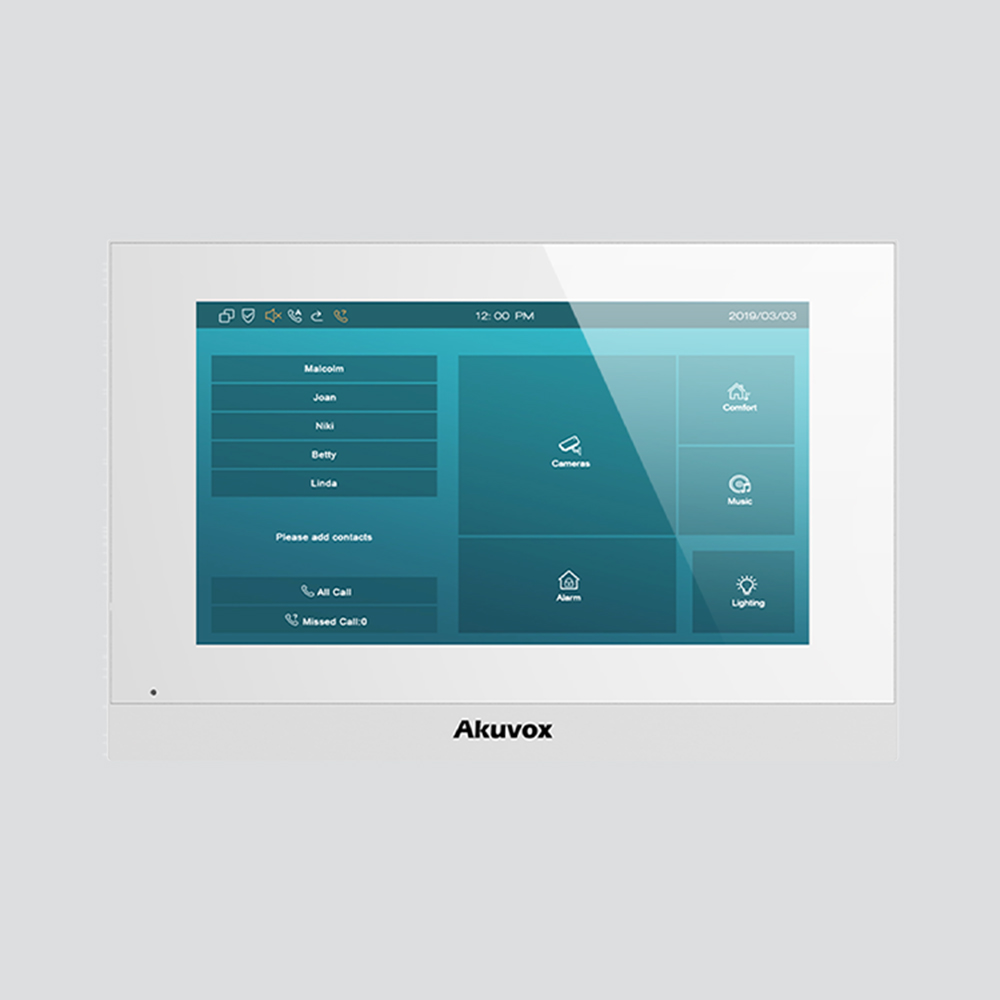

A Smart Indoor Monitor with Sleek Design and Reliable Performance

The Akuvox C313W is a 7-inch smart indoor monitor that combines a slim, modern look with powerful functionality. Running on a stable Linux OS, it supports both Wi-Fi and Bluetooth connectivity for seamless audio and video communication with outdoor units via SIP 2.0. Featuring a high-resolution touch display and energy-saving mode, it offers a smooth, user-friendly experience — ideal for smart apartments and modern homes.

Technical Specifications – Akuvox C313W

Display

• Screen Type: 7" TFT LCD Touchscreen
• Resolution: 800 × 480 pixels
• Contrast Ratio: 500:1
• Brightness: 220 cd/m²
• Viewing Angle: 50° (Left/Right), 40° (Up), 50° (Down)
• Display Mode: Default white, transmissive
• Energy-saving Mode: Supported

Audio & Communication

• Microphone: Built-in, -58 dB sensitivity
• Speaker: 4Ω / 2W
• Audio Technologies: Echo cancellation, Voice activation detection, Comfort noise generation, Automatic gain control
• SIP Support: SIP v1 (RFC2543), SIP v2 (RFC3261)
• Audio Codecs:711a, G.711μ, G.729, G.722
• DTMF Support: In-band and out-of-band (RFC2833), SIP Info

Network & Connectivity

• Network Protocols: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
• Wireless Connectivity: Wi-Fi (802.11 b/g/n, 2.4GHz), Bluetooth
• Ethernet Ports: 2 × RJ45, 10/100 Mbps
• Power over Ethernet: Supported (IEEE802.3af compliant)
• Alternative Power: 12V DC

General Specifications

• Operating System: Linux
• Memory: RAM: 64 MB, ROM: 128 MB
• Inputs: 8 configurable alarm inputs, 1 bell input, 1 RS485 port
• Outputs: 1 relay output
• Tamper Protection: Supported
• Installation: Wall-mounted or desktop

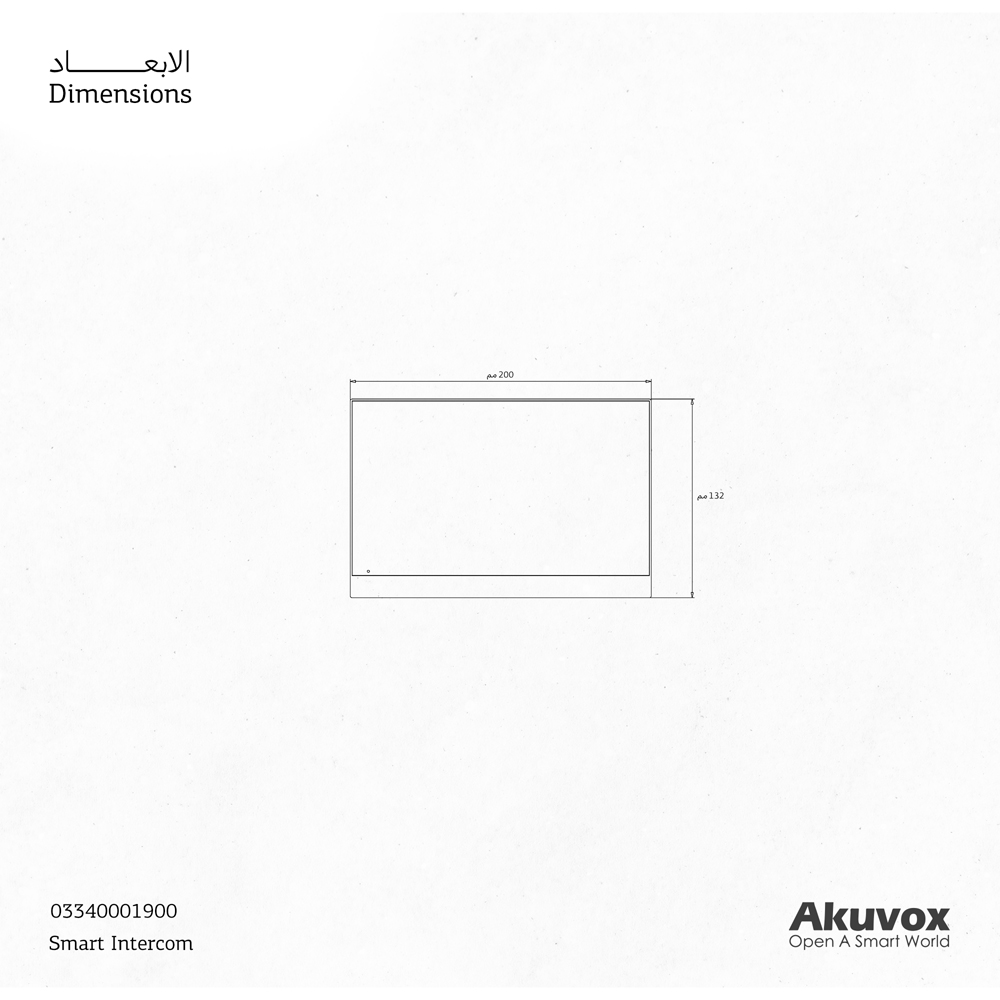

• Dimensions:2 × 132.2 × 27.2 mm
• Operating Temperature: -10°C to +45°C
• Storage Temperature: -20°C to +70°C
• Operating Humidity: 10% to 90%

Smart Features

• Voice Assistant: Not supported
• Voice Changer: Not supported
• Screen Brightness: Automatically adjusts based on ambient light
• Third-Party App Support: Not supported
